Mixing and Granulation Units at IBU-tec
Our core expertise is the mixing and impregnation of dry solids, particularly powders. Impregnation—the controlled application of liquids to typically porous solids—is a key part of our services.
We employ multiple mixing techniques to address different material properties and process requirements. Our equipment includes six plow share mixers for intensive and homogeneous blending, as well as two cone mixers. We also operate a heatable Lindor mixer, known for its gentle mixing action; this unit can also be used for drying and impregnation.
Furthermore, our facility features three Eirich intensive mixers. Their robust design makes them suitable for diverse applications, with a special emphasis on powder granulation.
Our long-term experience with solids, powders, and granules, combined with our diverse technical equipment, allows us to provide the optimal solution for every application. We establish the foundation for reliable and economical processing in research, development, and industrial production. A strong emphasis is placed on reproducible processes, consistent high product quality, and custom adaptation to specific customer requirements. Our flexible technology and deep process understanding enable us to handle complex mixing tasks efficiently and support customers throughout the entire value chain.
Overview of Our Mixing Techniques
Typ | Number on site | Typical size | Attainable throughput | Material type | Specifications / Special characteristics | Impreg-nation |
EIRICH Intensive mixer R02 | 1 | Useable vol.: 5 l | N/A | Stainless steel | Laboratory mixer/Recipe development | possible |

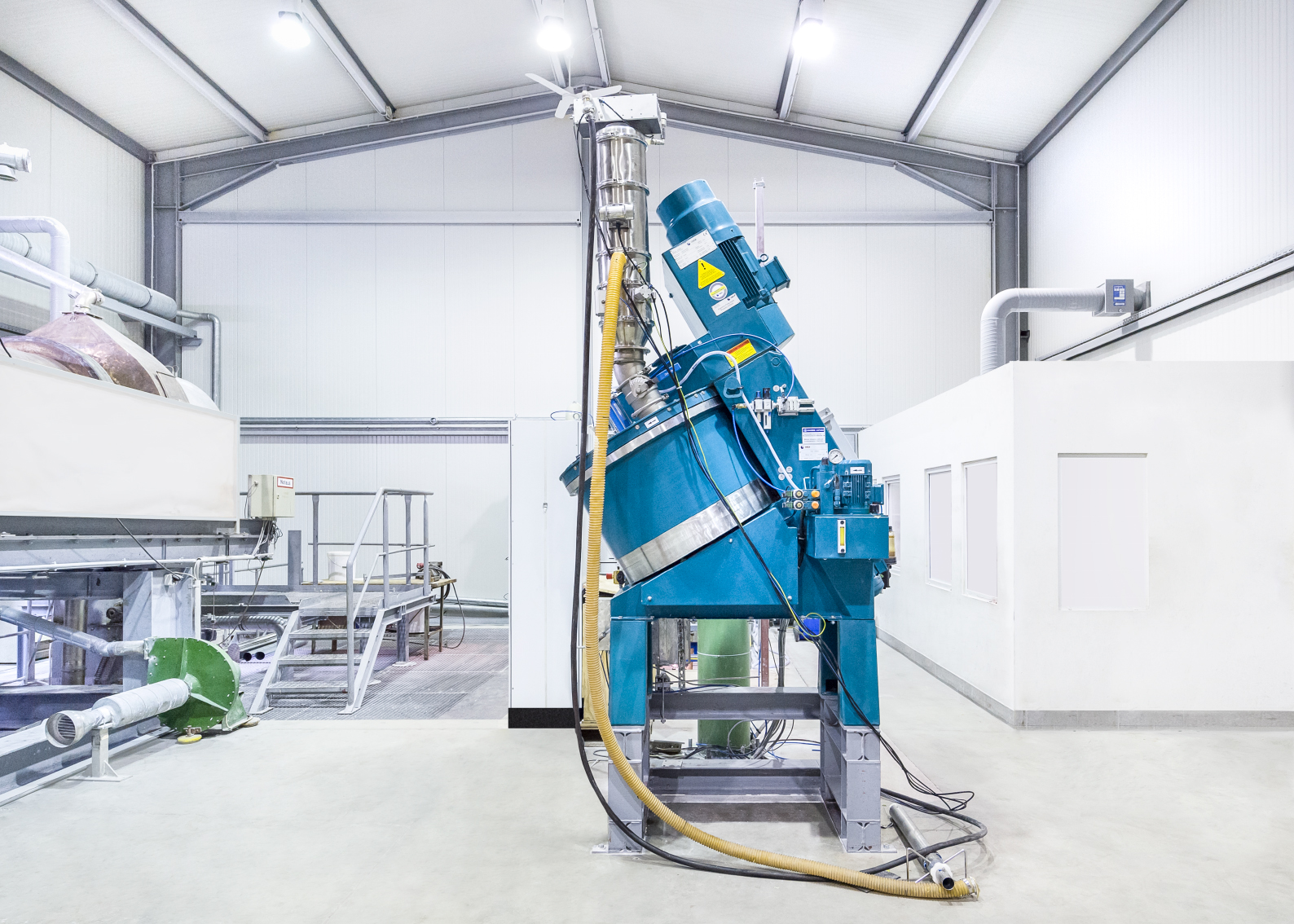

EIRICH Intensive mixer R09 | 1 | Useable vol.: 150 l | up to 300 kg/h | Stainless steel | Batch mixer, suitable for trials or production | possible |
EIRICH Intensive mixer R11 | 1 | Useable vol.: 250 l | up to 500 kg/h | Carbon steel | For production; automated material feeding and recipe weighing | possible |
Lödige ploughshare mixer | 6 | 1 x à 1,600 l 4 x à 600 l 1 x à 300 l | up to 500 kg/h up to 300 kg/h up to 150 kg/h | Stainless steel | Batch mixer, suitable for trials or production, 1x with chopper devices & jacket for heating and cooling | possible |
Minox mixer | 1 | Volume: 600 l | up to 300 kg/h | Stainless steel | Heating/cooling of the mixing drum possible, rotational speed of the centrifuge variable / knife heads available | possible |
Lindor mixer L750 | 1 | Volume: 1.500 l Useable vol.: 750 l | Depending on bulk density | Stainless steel | Can be operated inert / Temperature control installation in preparation | retrofittable |
Cone mixer | 2 | 1 x à 1,500 l 1 x à 2,500 l | up to 400 kg/h | Stainless steel | Batch mixer, suitable for trials or production | not possible |
Mixing silo | 1 | ca. 10 m3 | Stainless steel | Internal screw conveyor | not possible |
